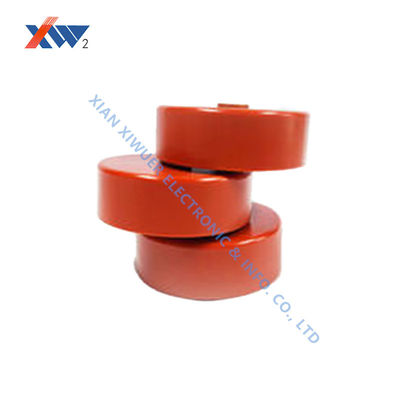

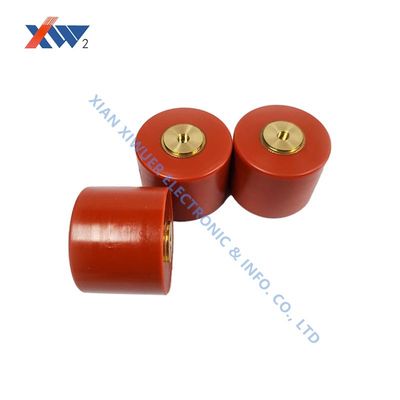

35KV 45PF High Voltage Doorknob Capacitor for Switchgear

  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear
  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear
  • 35KV 45PF High Voltage Doorknob Capacitor for Switchgear
Место происхождения XIAN, КИТАЙ
Фирменное наименование XIWUER
Сертификация ISO9001,ISO14001,ISO45001
Количество мин заказа 1 единица
Цена Подлежит переговорам
Упаковывая детали Картон
Время доставки 10~15days
Условия оплаты L/C, T/T.
Поставка способности 8 000 000 ПК год

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Вичат: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Выделить

35KV high voltage doorknob capacitor

,

45PF switchgear capacitor

,

high voltage capacitor for switchgear
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
Оставьте сообщение
Характер продукции
High Voltage Doorknob Capacitor

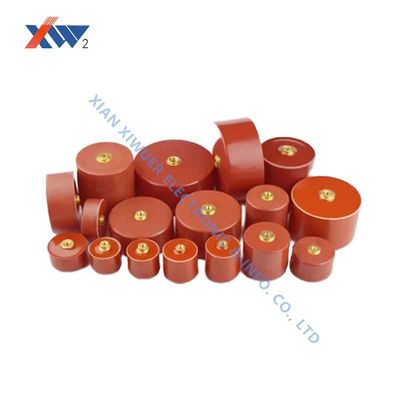

Live Line Ceramic High Voltage Doorknob Capacitors used in switchgear 35KV 45PF. High voltage ceramic capacitors are made of ceramic dielectric with excellent withstand voltage, performance under pulse and fast discharge conditions, low dissipation factor, and very low partial discharge. Available in coated and uncoated versions for various AC and DC high voltage circuit applications.
Main Technical Data
Type (pF) Capacitance DC Vol.(KV) Charge & Discharge Vol.(KV) Dimension(mm) Operating Temp. Range
CT8-1 2500 15 22.5 10×40×13×22×5×12 －25℃～＋85℃
1000 20 30 15×32×13×22
4000 50 15×24
10000 80 23×32
50 30 45 20×20×12×24×4×8
1000 45 23×32
31 17 21
2000 50 23×32 4×12
2700 60 20×29
3800 74 23×32
140 40 60 30×20×32×41×4×8
200 20 33×42
820 38 27×31
1000 40 27×36 4×12
3300 65 27×36
5600 80 23×28 5×12
570 45 67.5 30×36×24×32×4×12
1000 50 32×36 4×12
600 50 75 35×45×34×43×4×12 －25℃～＋85℃
1000 50 27×36
2000 60 32×41 5×12
3000 74 29×38 5×12
Notes of High Voltage Live Line Capacitors Voltage Indicator
  • Dimensions can be customized according to customer requirements
  • PD not more than 5pC at 1.1 times rated voltage without special note
  • Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
  • Complies with standard JBT10305-2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment at customers end)
  • Designed for use mainly below 3000 meters above sea level. Special marking required for high altitude applications
Company Overview
Xian Xiwuer Electronic and Info. Co., Ltd is a state-owned company established in 1976 with registered capital of CNY 101.465 million (USD15.85 million) and total assets of CNY315 million (USD 49.22 million). With about 460 employees and annual sales of CN280 million (USD43.75 million), the company operates from four production bases covering 43,052 square meters.
Technical Capabilities
The company employs 8 master's degree holders, over 80 senior engineers, 12 municipal government-recognized experts, and 1 State Council special allowance expert. It maintains a provincial Technical R&D Center with 32 patented technologies (including 4 invention patents) and 4 national key new products.
Main Products
  • Smart Embedded Epoxy Pole
  • Integrated Instrument Transformer
  • Capacitive Voltage Divider
  • Rogowski Coil
  • High Voltage Capacitor Rod
  • High Voltage Film Capacitor
  • High Voltage Resistor
  • Primary and Secondary Integrated Intelligent assembly with voltage/current measurement, protection, temperature monitoring, and power supply functions
  • Medium-High Voltage components/parts/assembly
  • Surge Protective Device for Power Supply System
  • Chips for lightening devices
  • Zinc Oxide Varistor and Thermistor
Major Customers
ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.
Quality Certifications
The company holds ISO9001, ISO14001, and ISO45001 certifications with products certified to UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH standards. It operates advanced production equipment imported from Japan, USA, Germany, Korea, and Belgium, including 26m sintering tunnel furnaces and 8 automatic assembly lines.
Testing Capabilities
Features two routine test laboratories with advanced lightning testing and environmental testing equipment compliant with national standards. These Shaanxi Province-supported laboratories also undertake electronic product supervision and inspection for the region.
Certificates
35KV 45PF High Voltage Doorknob Capacitor for Switchgear 0 35KV 45PF High Voltage Doorknob Capacitor for Switchgear 1 35KV 45PF High Voltage Doorknob Capacitor for Switchgear 2
